Next-Gen XC: The All-New Scott Spark RC Reinvents the Ultimate Race Platform

The Scott Spark stands as an undisputed titan in cross-country racing, having accumulated more elite podium finishes than any other platform in the sport.

When Scott previously integrated the rear shock inside the frame and pushed standard travel to 120mm, it redefined what modern XC bikes could do. For this model year, the Swiss manufacturer has completely overhauled its flagship race machine once again, replacing the prior linkage with an intricate, low-slung suspension layout that trims significant weight while boosting performance.

Rather than a simple evolutionary step, this iteration marks a structural reimagining. By re-engineering how the frame manages suspension forces, Scott has managed to drop frame weight by up to 12% while simultaneously adopting advanced electronic automated damping controls.

Re-Engineering the Hidden Shock: The Inverted Flex-Pivot

While the previous-generation Spark relied on a single-pivot configuration with a linkage driving a vertically oriented internal shock, the new model transitions to a highly sophisticated inverted virtual four-bar system. The rear shock now sits horizontally and much lower within the frame, driving a complex, multi-part short link that rotates concentrically around the bottom bracket.

A meticulously tuned flex-pivot within the carbon rear triangle makes this design possible:

• Initial Travel: The stays are engineered to deflect just 1mm during the first half of the bike's stroke. This minimal deflection ensures an undamped, highly supple feel that maximizes rear-wheel traction over small trail chatter.

• Deep Travel: As the bike pushes deeper into its 120mm of travel, the stays flex an additional 5mm to 6mm. This builds a naturally progressive spring rate, offering robust mid-stroke support and bottom-out resistance when hitting technical modern XC features at race pace.

Striking the Perfect Travel Balance

While the 180mm Karve EVO is unashamedly built to smash downhill tracks, the standard 160mm Karve offers broader appeal. The slightly shorter travel and more nimble handling characteristics translate to a bike that pedals more efficiently, climbs with greater agility, and brings a lively feel to standard trail networks.

Make no mistake—the geometry remains long, low, and aggressive, and the bike is built to be ridden hard. However, compared to its bigger sibling, the standard Karve adds an element of daily usability. For the vast majority of riders, this balanced approach represents the ideal configuration.

The Avinox M2S Motor System

At the heart of the Karve is the Avinox M2S drive unit, a system that is quickly rewriting the rules for full-power eMTBs. The M2S delivers incredible torque values and immediate power delivery. This allows riders to conquer incredibly steep, technical ascents that would cause lesser motors to bog down or stall.

Crucially, the raw power of the M2S is balanced by incredibly smooth, intelligent software tuning. The assistance feels predictable and manageable rather than jerky or overbearing, giving the rider total control over difficult obstacles. Additionally, the system features a remarkably clean layout. Frame profiles remain slim, and weight distribution is kept low, preventing the Karve from looking or handling like a bulky, traditional e-bike.

Striking Weight Reductions

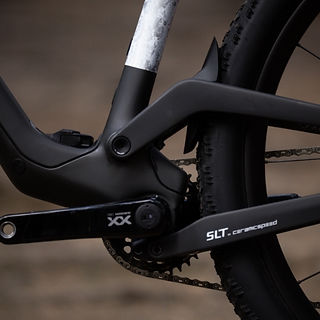

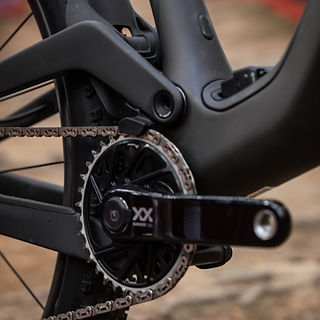

By centralizing the pivot assemblies and shock loads entirely around the bottom bracket—an area that must be heavily reinforced anyway to handle pedalling forces—Scott’s engineers were able to strip material away from the top tube and seat tube.

The resulting weight savings across the medium size frames are highly impressive:

• HMX-SL Frameset: Weighs just 1,427g (painted, including hardware and covers, minus shock). This represents a 197g (12%) reduction over the previous HMX-SL chassis. Even when paired with a RockShox SIDLuxe Ultimate Flight Attendant electronic shock (bringing total weight to 1,776g), it remains 94g lighter than the previous mechanical-lockout setup.

• HMX Frameset: Sheds roughly 183g compared to its predecessor, easily offsetting the minor weight penalty of automated electronic suspension components.

• HMF Frameset: The entry-level carbon layup drops 111g, meaning even affordable builds benefit from the architectural overhaul.

To maximize longevity in the high-load, mud-prone bottom bracket region, HMX and HMX-SL tiers utilise premium CeramicSpeed SLT bearings backed by a lifetime warranty, while the standard HMF tier utilises double-sealed stainless steel bearings.

Standardised Shock Compatibility and Easier Access

A major departure from prior generations is Scott's move away from proprietary shock dimensions. The new frame accommodates standard 190x45mm metric rear shocks. While stock models feature custom-tuned dampers from RockShox or Fox, riders are no longer locked into a proprietary system, paving the way for easier aftermarket upgrades and widespread compatibility with automated electronic systems like RockShox Flight Attendant.

Furthermore, access to the internal compartment has been drastically improved. The top and side of the shock housing feature magnetic and snap-on asymmetric covers. This configuration makes it simple to alter air pressure, adjust rebound controls, switch out SRAM AXS batteries on automated shocks, or check the external mechanical sag indicator. Tucked right next to the shock is a dedicated, integrated tool kit containing 6mm Allen, T25 Torx, and suspension-specific tools.

Aggressive Geometry and Real-World Practicality

The geometry of the new Spark RC is built around the punishing, high-speed nature of contemporary World Cup circuits. Optimised around 29-inch wheels and a 120mm travel platform (capable of running up to a 130mm fork), the bike embraces an incredibly slack footprint.

Using adjustable modular headset cups, riders can tune the head tube angle to 65.4°, 65.9°, or 66.4°. Despite this downhill-inspired slackness, the bike retains a low, aggressive race stance with a tight 434mm chainstay length across all frame sizes. Tyre clearance has been expanded to accommodate up to 2.6-inch rubber, and the front triangle still retains ample room to carry two full-sized water bottles—even on the smallest frame size.

Build Tiers and Key Component Spec

The updated frame launches alongside a new generation of Syncros components. Higher-tier builds feature the one-piece Syncros iC-M100-SL carbon cockpit (weighing just 210g) and Silverton CF1 wheels, which feature an updated 30mm internal rim profile and removable carbon spokes to bring total wheelset weight down to an impressive 1,180g.

While top-tier models command premium pricing with full SRAM XX SL AXS drivetrains, Scott has structured the mid-tier lineup to offer high performance at a more accessible bracket. For instance, the Spark RC Team Issue pairs an automated RockShox Flight Attendant suspension package and built-in power meter with a wireless SRAM GX AXS Transmission. Meanwhile, the lightweight Spark RC Pro sidesteps electronics completely, opting for mechanical-lockout Fox Factory suspension and a full Shimano XTR Di2 groupset to prioritise pure weight savings.

Summary: The Ultimate Racing Evolution

The latest Scott Spark RC successfully accomplishes a difficult engineering feat: making a race-proven, highly integrated full-suspension bike significantly lighter while abandoning proprietary shock configurations. With its ultra-slack adjustable geometry, innovative bottom-bracket-concentric linkage, and a frame designed to exploit automated electronics, this machine is fully prepared to lead the next generation of cross-country racing.

---
